HF Neodymium Drive - Driver in neodimio
Key Features
- 109 dB 1W / 1m average sensitivity
- 1,4 inch exit throat
- 3 inch edgewound aluminum voice coil
- 200 W continuous program power handling
- Pure Titanium diaphragm assembly
- Neodymium magnetic structure
- Excellent thermal exchange
Description
The ND1460 1.4 inch exit neodymium high frequency compression driver has been designed for use in high quality sound systems. The pure titanium diaphragm is produced in house and has been developed to assure unmatched transient response. The diaphragm assembly is made by joining the former directly to the titanium dome using its upper bend edge. In comparison with a usual straight former joint, the driver design assures extended frequency energy transfer giving improved response linearity and unparallel reliability. This feature facilitates proper motion control of the dome in real working conditions. A proprietary treated Nomex former is used as Nomex shows a 30% higher value of tensile elongation at a working operative temperature (200°C) when compared to Kapton. Moreover, this proprietary former material is also suitable for use in high moisture content environments. By carefully using elementary pieces of neodymium magnets, Eighteen Sound engineers have developed a powerful neodymium magnet assembly capable of reaching 19KGauss in the gap in compact and lightweight structures. The motor structure, throughout the precisely coherent phase plug with 3 circumferential slots and copper ring on the pole piece, reduces inductance effects and distortion. Four top plate air ducts have been designed to act as a loading chamber for the diaphragm, implementing mid band distortion and response figures. The custom designed O-ring creates a tight seal between the plate and the cover assuring air chamber loading. Excellent heat dissipation and thermal exchange are guaranteed by the direct contact between the magnetic structure and the aluminum cover which leads to a lower power compression value. The ability of equipment to perform properly under inclement weather conditions is a key feature of the Eighteen Sound philosophy. Hence, a special treatment is applied to the magnet and the top and back plates of the magnetic structure which increases the ND1460 resistance to the corrosive effects of salts and oxidization. This treatment is more effective than any other treatment in use today.
General Specifications HF
| Throat Diameter | 35,5 mm (1,4 in) |
| Rated Impedance | 8 Ohm |
| D.C. Resistance | 6,2 Ohm |
| Minimum Impedance | 8 Ohm at 3500 Hz |
| Le (1kHz) | 124 µH |
| AES Power | 100 W above 1,2 kHz |
| Program power (8) | 200 W above 1,2 kHz |
| Sensitivity (9) | 109 dB |
| Frequency Range | 500 Hz - 20 kHz |
| Recomm. Xover Frequency | above 800 Hz (12 dB/octave) |
| Diaphragm material | Titanium |
| Voice Coil Diameter | 75 mm (3 in) |
| Voice Coil winding material | Edge-wound aluminum |
| Magnet material | Neodymium |
| Flux Density | 1,9 T |
| Bl Factor | 13,5 N/A |
| Polarity | Positive voltage on red terminal gives positive pressure in the throat |

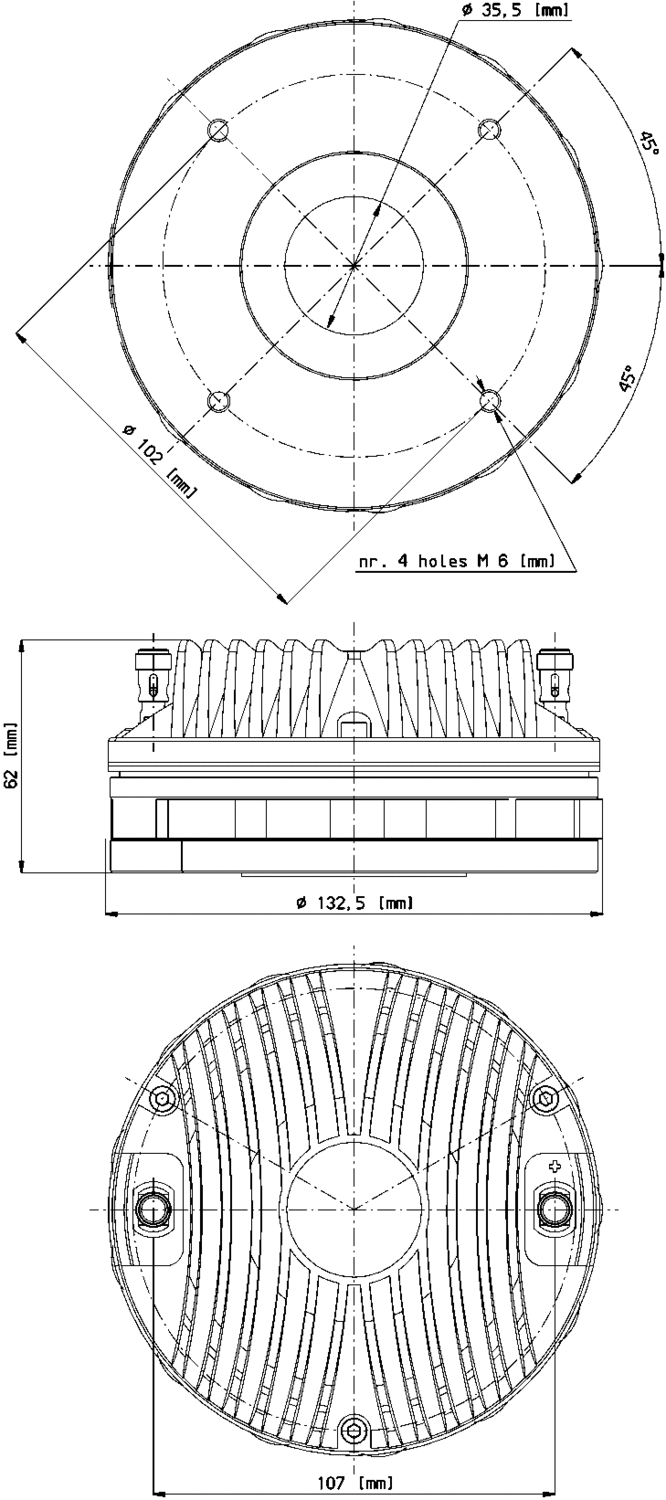

Mounting information
| Overall diameter | 132,5 mm (5,22 in) |
| N. of mounting holes and bolt | 4 M6 holes 90° at Ø102 mm (4 in) |
| Bolt circle diameter | 102mm (4 in) |
| Total depth | 62 mm (2,5 in) |
| Net weight | 2,9 Kg (6,39 lb) |
| Shipping weight | 3 Kg (6,61 lb) |
| Packaging Dimensions | 3 Kg (6,61 lb) |
