Axiom ED23PMKII

CONTATTACI PER RICEVERE UN PREVENTIVO PERSONALIZZATO!!

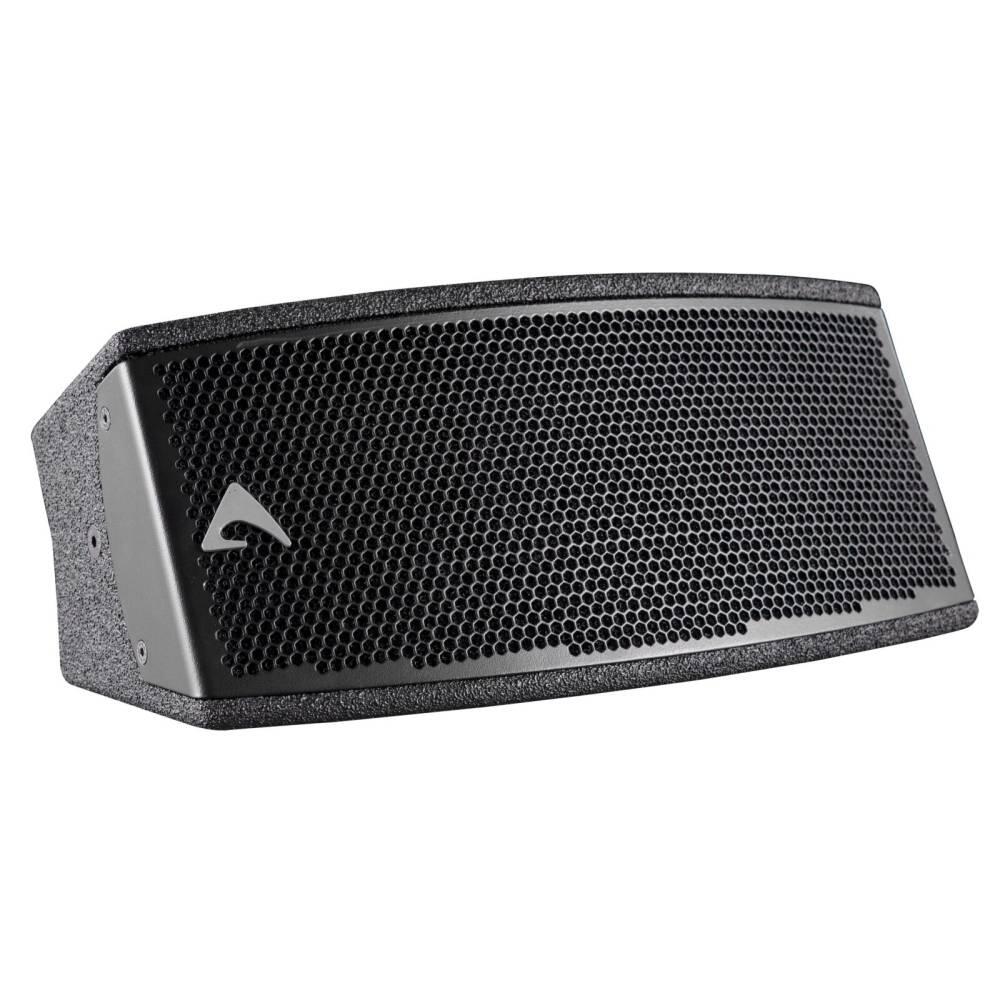

Designed for near-field sound reinforcement applications such as television, stage front, conferencing, theatres, and audio-visual, the ED23PMKII is an ultra-compact passive two-way loudspeaker that can be used either on its own or in small loudspeaker arrays creating even and seamless coverage.

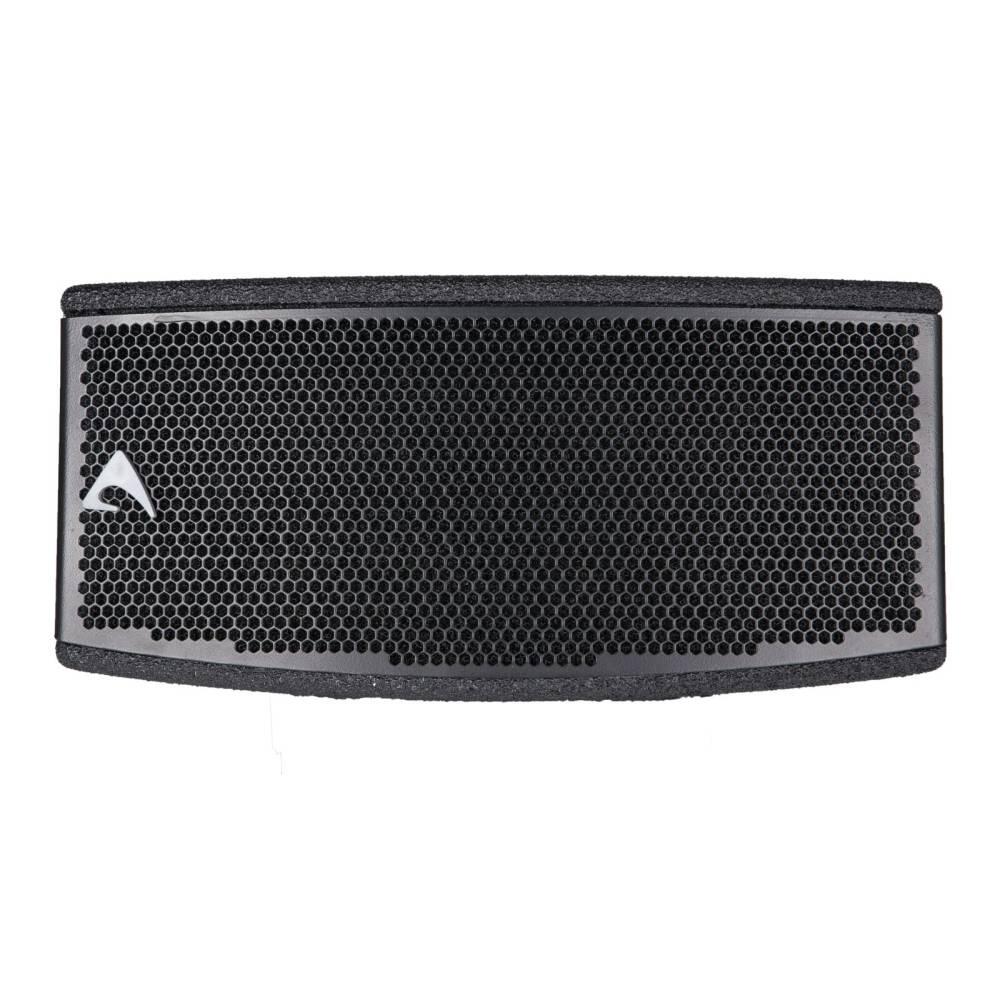

Its two 3.5” woofers and high frequency dome tweeter with Spherical Wave Guide Horn are arranged in a WTW linear enclosure configuration to give a wide dispersion pattern that works well in fixed installations using a minimal number of units, allowing widely spaced units to cover large spaces with high quality background sound.

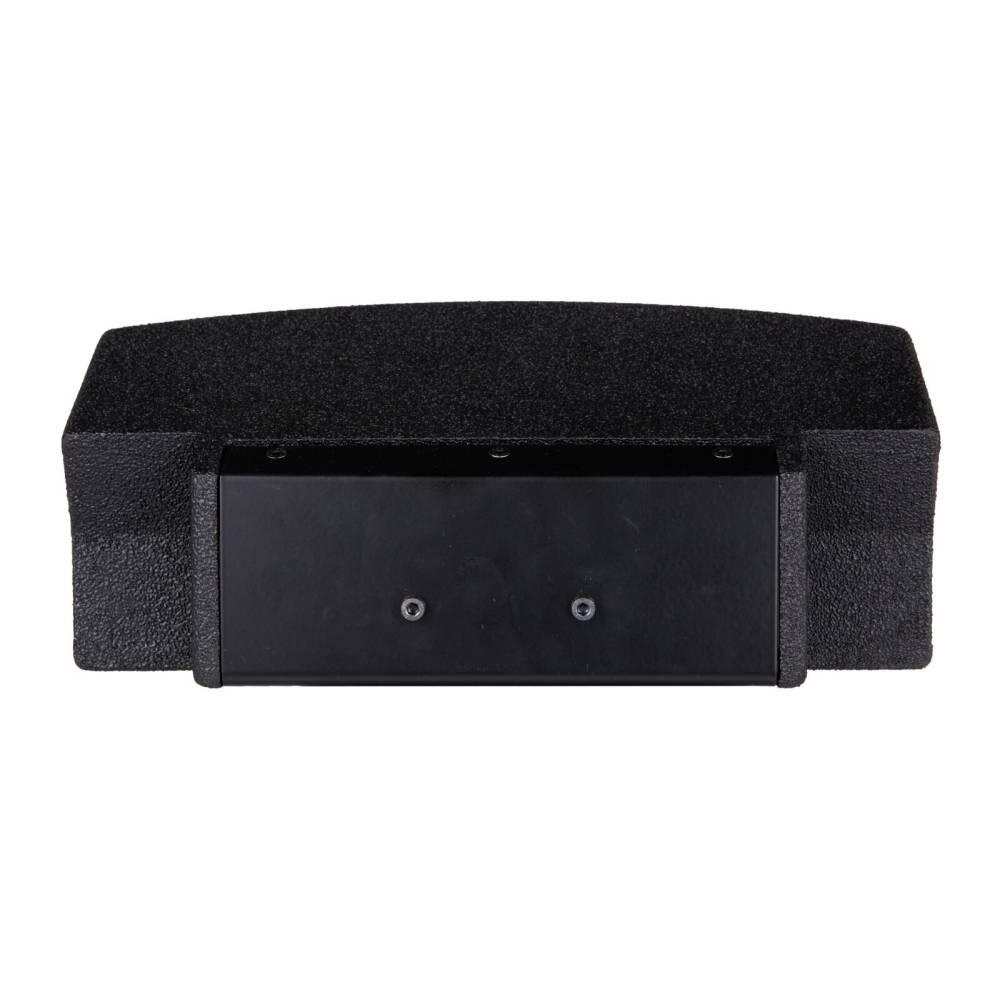

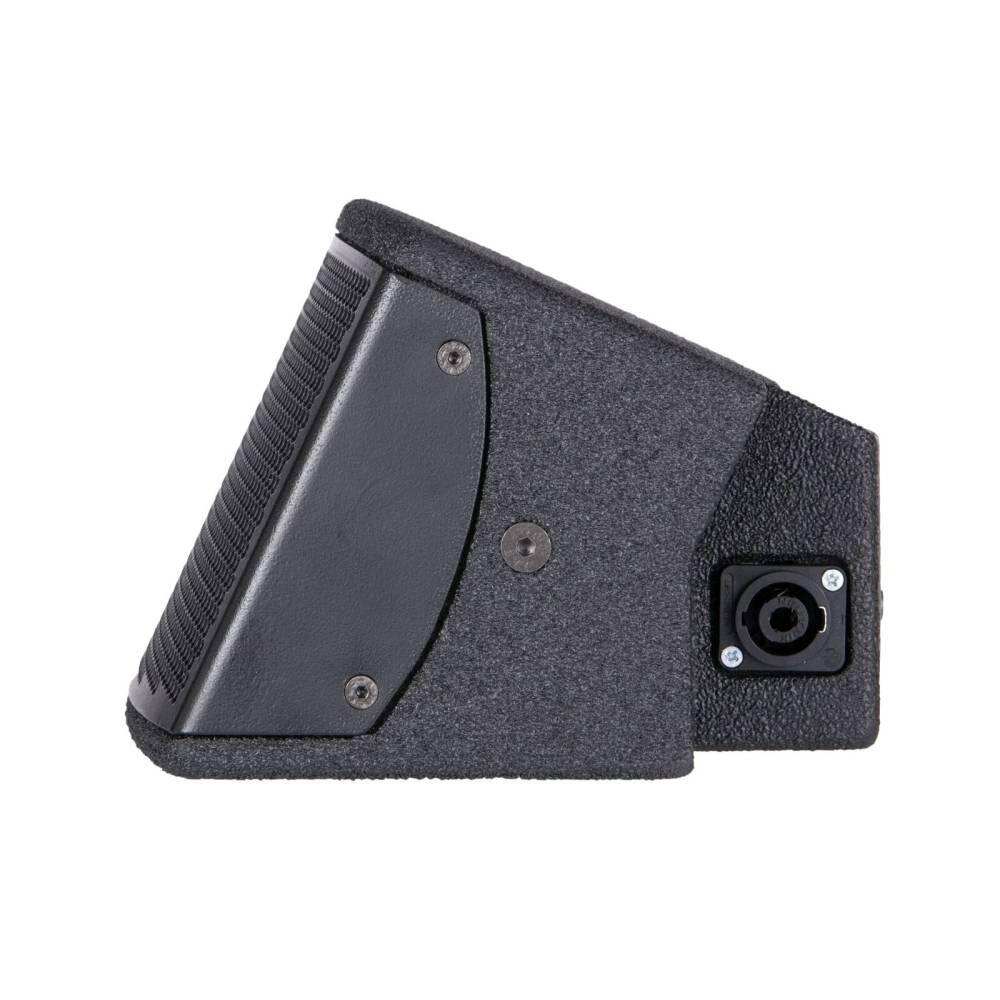

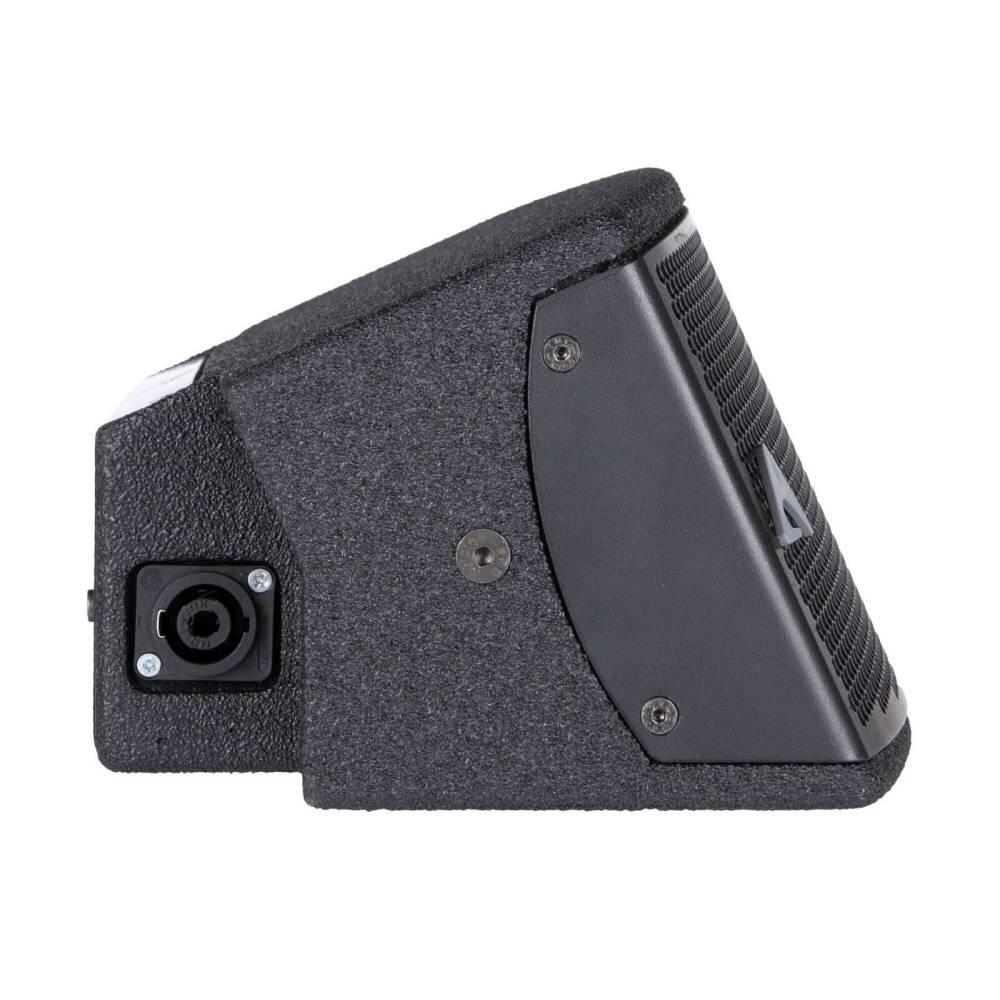

The cabinet is trapezoidally shaped, and also asymmetrical, and this profile not only allows the assembly of small clusters using the integral flypoints, but also enables it to be suspended horizontally very close to a ceiling or placed on a stage front as a low profile monitor.

Due to its very low profile, the ED23PMKII is an ideal stage lip monitor, and especially useful for fashion show catwalks where it can be unobtrusively provide alternate inwards / outwards coverage for both audience and presenters.

The ED23P features high quality passive crossovers for efficient use of available amplifier power and simplicity of operation.

KEY FEATURES

• WTW configuration with a Spherical Wave Guide Horn (SWGH)
• FEA computer modelled horn profile
• Ultra-compact size
• Easily configurable in small arrays
