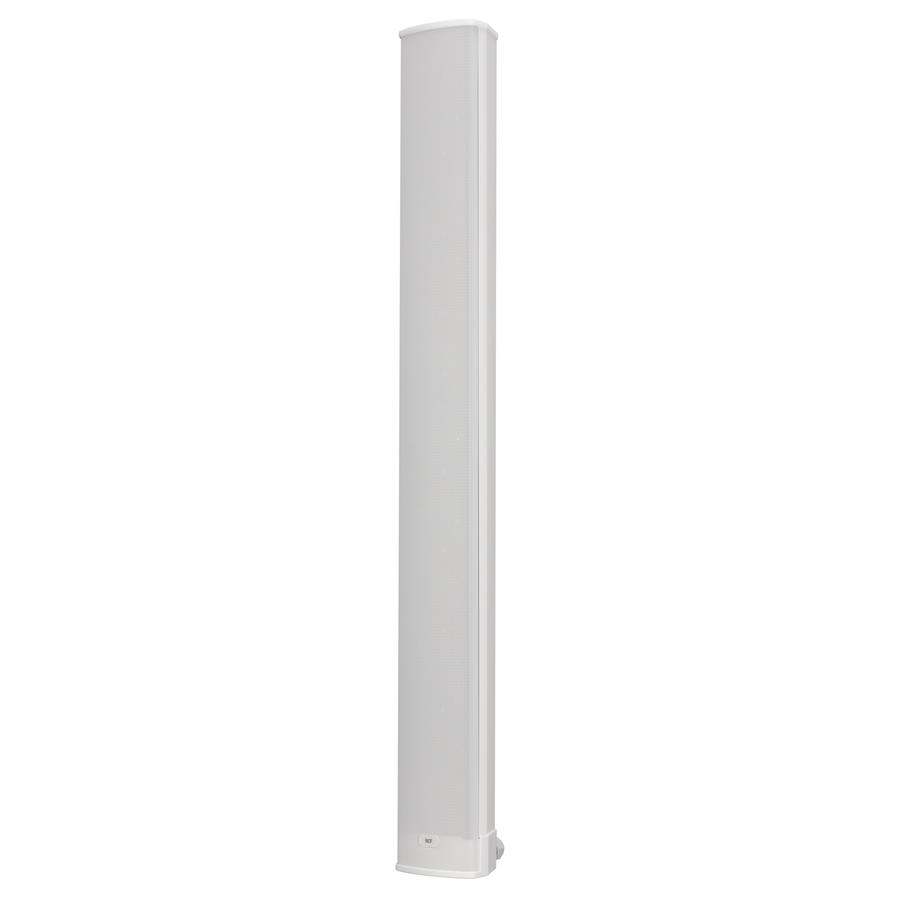

CS 6940EN is a two-way speakers with very compact dimensions. It features 8 x 3.5'' extended-range speakers and a 0.79'' voice coil tweeter.
This model implements several innovative technological solutions that guarantee highly intelligible reproduction of the vocal message. It includes a line transformer for directly connecting the speaker columns to 70 V or 100 V constant-voltage systems and, thanks to a rotary power selector, allows to select the power to be diffused among different values (40 – 20 – 10 – 5 W).
Thanks to IP 66 protective grade, it can also be used outdoor. Suitable for any Voice Alarm application certified EN54, included airports, railway stations, subways, churches, factories, warehouses, malls, etc.
- FREQUENCY RESPONSE (-10DB): 140 Hz ÷ 20000 Hz
- MAX SPL @ 1M: 109 dB
- MAX SPL @ 4M: 97 dB
- HORIZONTAL COVERAGE ANGLE: 194°
- VERTICAL COVERAGE ANGLE: 30°
- SYSTEM SENSITIVITY: 95 dB
- SYSTEM SENSITIVITY 1W @ 4M: 83 dB
- POWER HANDLING: 40 W RMS
- PEAK POWER HANDLING: 160 W PEAK
- RECOMMENDED AMPLIFIER: 80 W
- PROTECTIONS: Thermal fuse
- DOME TWEETER: 0.75''
- FULLRANGE: 8 x 3.0''
- INPUT CONNECTORS: Ceramic screw terminals
- OUTPUT CONNECTORS: Ceramic screw terminals
- CONSTANT VOLTAGE TRANSFORMER: 70/100 V
- POWER SELECTION 1 (100 V): 40 W - 250 ohm
- POWER SELECTION 2 (100 V): 20 W - 500 ohm
- POWER SELECTION 3 (100 V): 10 W - 1000 ohm
- POWER SELECTION 4 (100 V): 5 W - 2000 ohm
- POWER SELECTION 5 (100 V): 2.5 W - 4000 ohm
- IP PROTECTION GRADE: IP 66
- EN54-24 CERTIFIED: Yes
- CE MARKING: Yes
- CPR NUMBER: 1488-CPR-0490/W
- CABINET/CASE MATERIAL: Aluminium
- GRILLE: Aluminium
- COLOR: White - RAL 9003
- Dimensione (LxAxP): 114x995x96 mm
- Peso: 7 kg
