Woofer di ricambio 8",350/700W, 97dB,80Hz, 80‐4000Hz, 64mm, Rame
- 700 W continuous program power capacity
- 64 mm (2.5 in) copper voice coil
- 80 - 4000 Hz response
- 97 dB sensitivity
- Neodymium inside slug magnet assembly
- Shorting copper cap for extended HF response
- Ventilated voice coil gap for reduced power compression
- Ω: 8 oppure 16

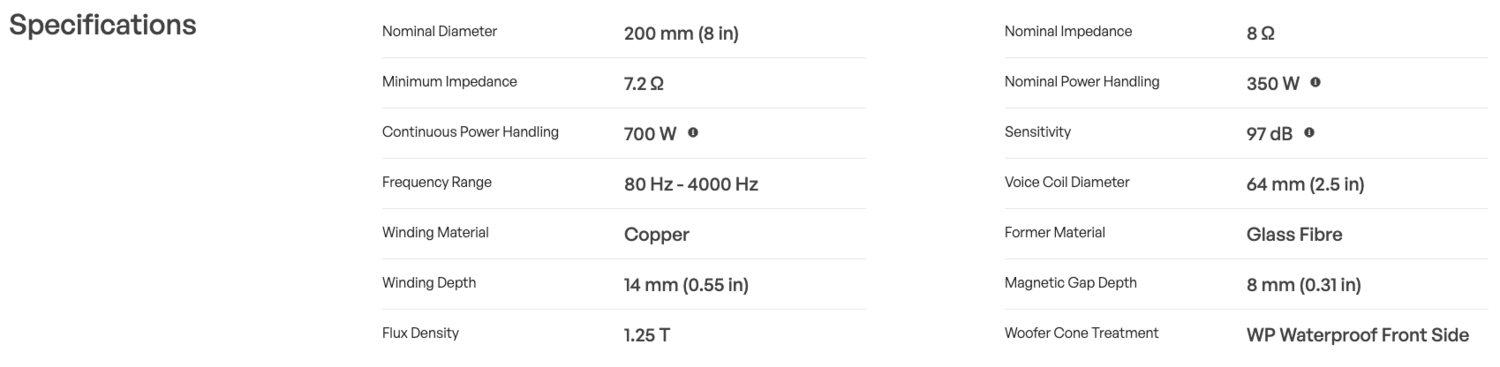

SPECIFICATIONS
- Nominal Diameter 200 mm (8 in)
- Nominal Impedance 8 / 16 Ω
- Minimum Impedance 7.2 Ω
- Power Handling Nominal (AES) 350 W
- Continuous Program 700 W
- Sensitivity (1W/1m) 97 dB
- Frequency Range 80 - 4000 Hz
- Voice Coil Diameter 64 mm (2.5 in)
- Winding Material Copper
- Former Material Copper
- Winding Depth 14 mm (0.55 in)
- Magnetic Gap Depth 8 mm (0.31 in)
- Flux Density 1.25 T
- Magnet Material Neodymium Inside Slug
- Waterproof Cone Treatment Front Side

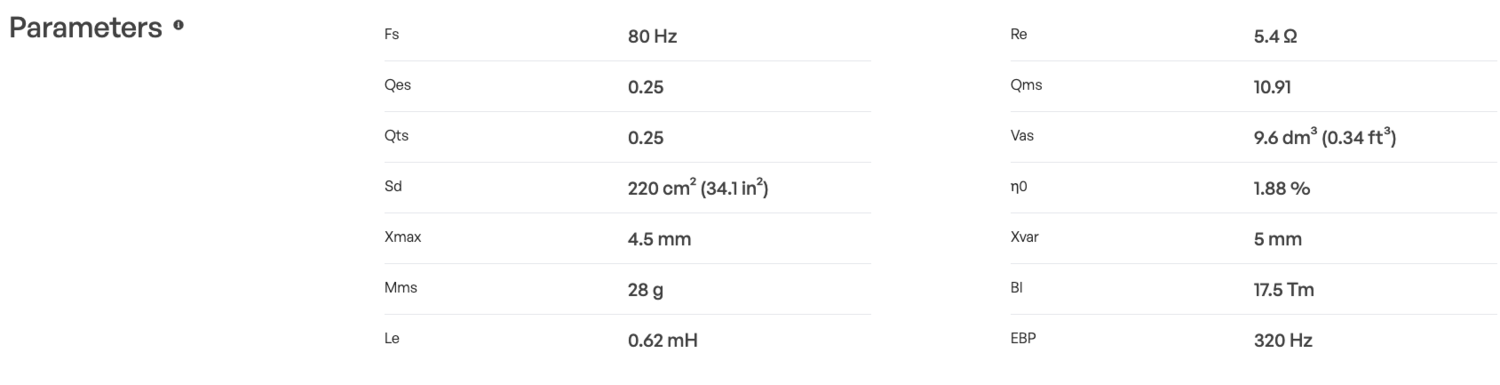

THIELE & SMALL PARAMETERS
- Fs 80 Hz
- Re 5.4Ω
- Qes 0.25
- Qms 10.91
- Qts 0.25
- Vas 9.6 dm3 (0.34 ft3)
- Sd 220 cm2 (34.1 in2)
- η0 1.88 %
- X max ± 4.5 mm
- X var ± 5.0 mm
- Mms 28 g
- Bl 17.5 T·m
- Le 0.62 mH
- EBP 320 Hz

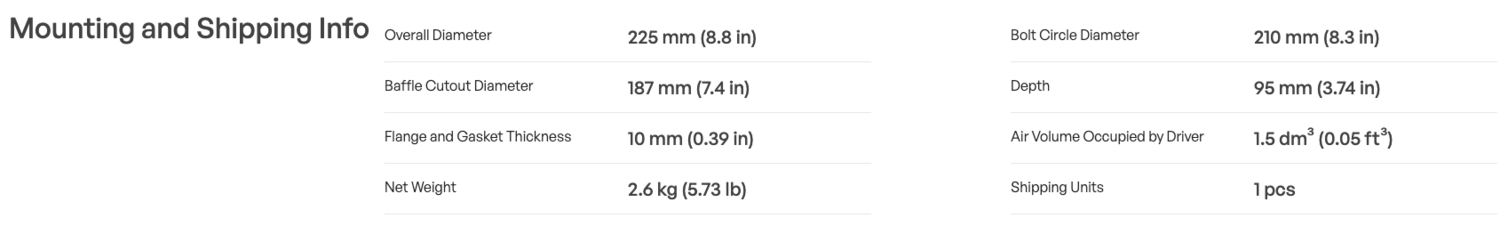

MOUNTING AND SHIPPING INFORMATION
- Overall Diameter 225 mm (8.8 in)
- Bolt Circle Diameter 210 mm (8.3 in)
- Baffle Cutout Diameter 187 mm (7.4 in)
- Depth 95 mm (3.74 in)
- Flange and Gasket Thickness 10 mm (0.39 in)
- Air volume occupied by driver 1.5 dm3 (0.05 ft3)
- Net Weight 2.8 kg
