Eighteen Sound HD1030
Driver HF 1" con magnete in ferrite e bobina da 1,3", 60W program. Spedizione OMAGGIO!
Codice prodotto: 0421M8H810
€89,00
Per info disponibilità inviare mail a info@promusicstore.it
HF Ferrite Drive - Driver in ferrite
- 1 inch exit throat
- 106 dB SPL 1W / 1m average sensitivity
- 34,4 mm (1 1/3 inch) voice coil diameter
- 60 Watt program power handling
- Titanium diaphragm
- Proprietary phase plug design
- Usable in two way or multiway systems
General Specifications HF
Throat Diameter | 25,4 mm (1 in) |
Rated Impedance | 8 Ohm |
D.C. Resistance | 5,8 Ohm |
Minimum Impedance | 6,5 Ohm at 5000Hz |
Le (1kHz) | 54 µH |
AES Power | 30 W above 2 kHz |
Program power (8) | 60 W above 2 kHz |
Sensitivity (9) | 106 dB |
Frequency Range | 1800Hz - 20kHz |
Recomm. Xover Frequency | 1800Hz 12dB/oct slope |
Diaphragm material | Titanium |
Voice Coil Diameter | 34,4 mm (1 1/3 in) |
Voice Coil winding material | Edge-wound aluminum |
Magnet material | Ferrite |
Flux Density | 1,5 T |
Bl Factor | 5 N/A |
Polarity | Positive voltage on red terminal gives positive pressure in the throat |

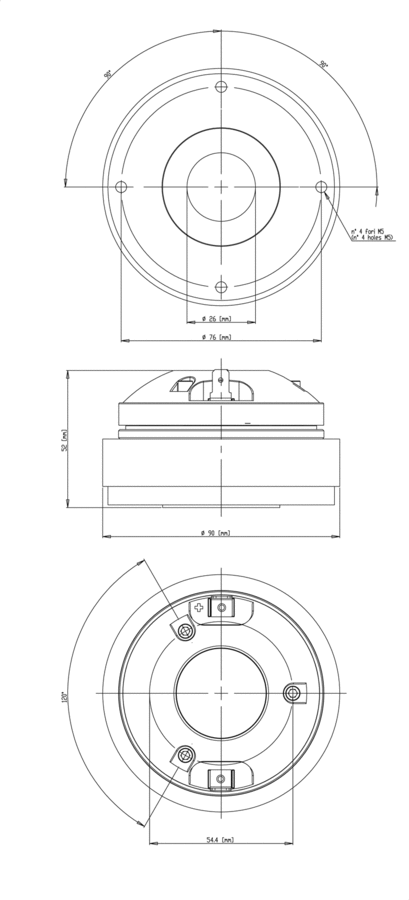

Mounting information
Overall diameter | 91 mm (3.6 in) |
N. of mounting holes and bolt | 4 M5 holes on Ø 76 mm (3 in) |
Bolt circle diameter | 76 mm (3 in) |
Total depth | 51 mm (2 in) |
Net weight | 1 kg (2,2 lb) |
Shipping weight | 1,1 Kg (2,42 lb) |
Packaging Dimensions | 1,1 Kg (2,42 lb) |
