HF Ferrite Drive - Driver in ferrite
- 1 inch exit throat
- 109 dB SPL 1W / 1m average sensitivity
- 25,4 mm (1 in) edgewound aluminum voice coil
- 50 Watt program power handling
- Low weight, easy mounting and handling structure
- Usable in two way or multiway systems
General Specifications HF
Throat Diameter | 25,4 mm (1 in) |
Rated Impedance | 8 Ohm |
D.C. Resistance | 5,7 Ohm |
Minimum Impedance | 8 Ohm 5000Hz |
AES Power | 25 W above 2,5 kHz |
Program power (8) | 50 W above 2,5 kHz |
Sensitivity (9) | 109 dB |

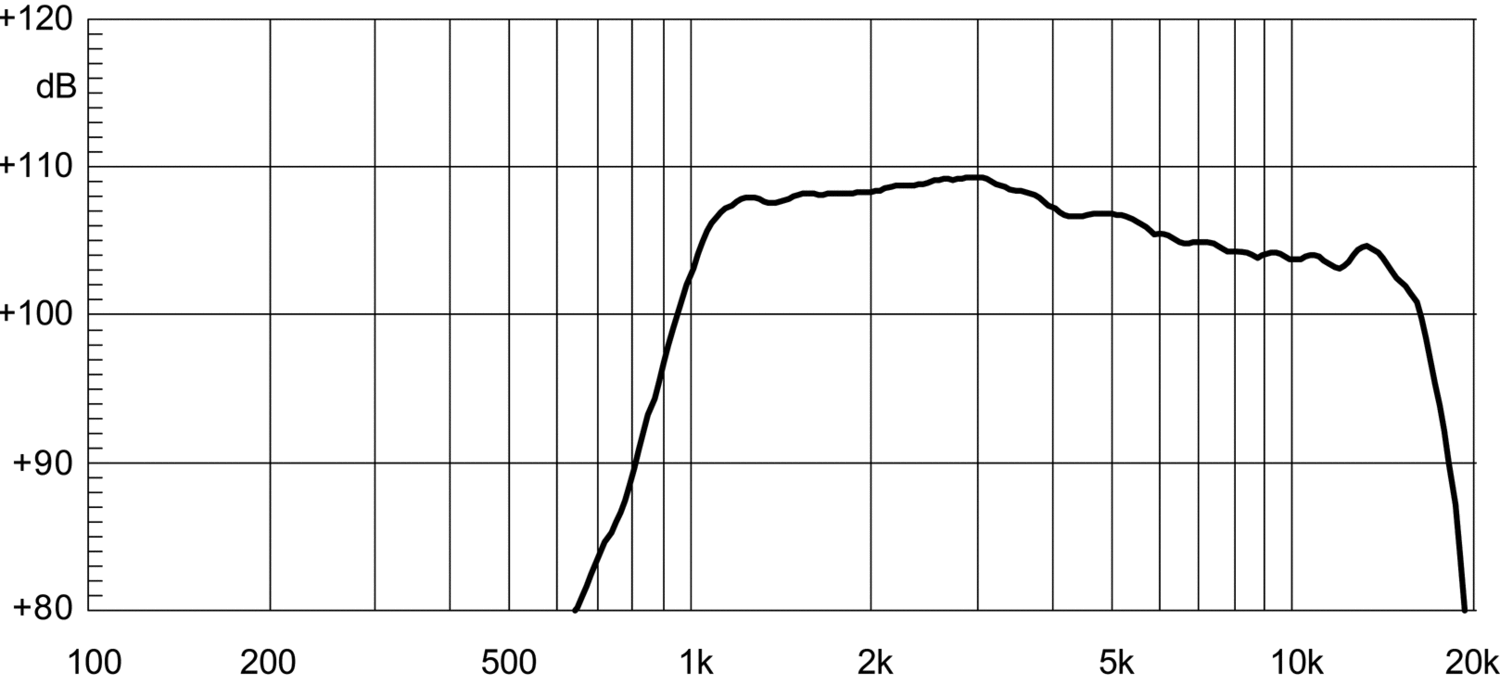

Frequency Range | 2 kHz - 18 kHz |
Recomm. Xover Frequency | 2500 Hz (12dB/oct slope) |
Diaphragm material | Polyester |
Voice Coil Diameter | 25,4 mm (1 in) |
Voice Coil winding material | Edge-wound aluminum |
Magnet material | Ferrite |
Flux Density | 1,65 T |
Bl Factor | 3,5 N/A |
Polarity | Positive voltage on + terminal gives positive pressure in the throat |
Mounting information
Overall diameter | 87 mm (3,4 in) |
N. of mounting holes and bolt | 2 M5 at 180 degrees |
Bolt circle diameter | 76 mm (3 in) |
Total depth | 46 mm (1,8 in) |
Net weight | 0,8 Kg (1,77 lb) |
Shipping weight | 0,9 Kg (1,99 lb) |
Packaging Dimensions | 0,9 Kg (1,99 lb) |
