IL PREZZO SI RIFERISCE AL SINGOLO WOOFER.

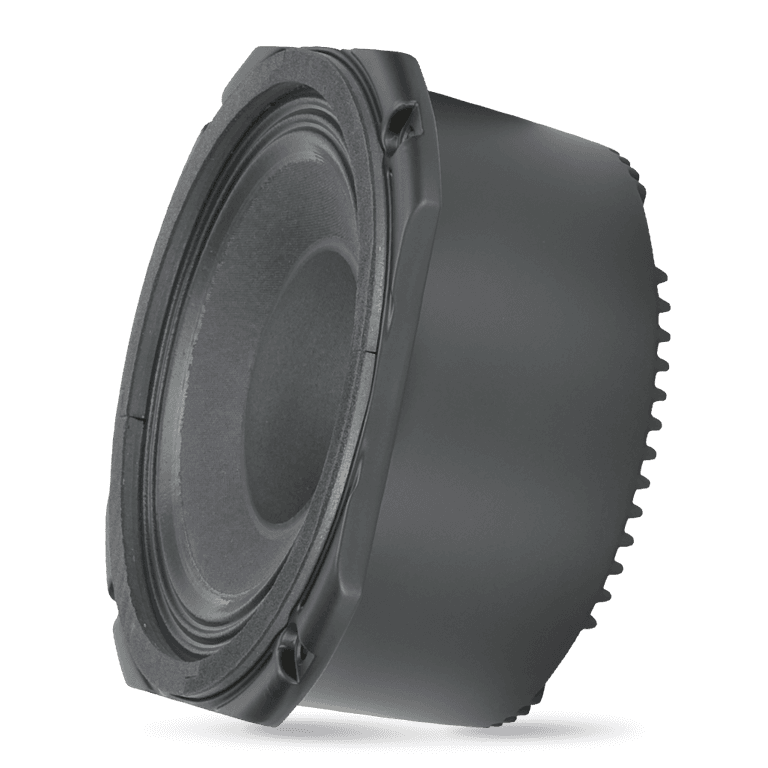

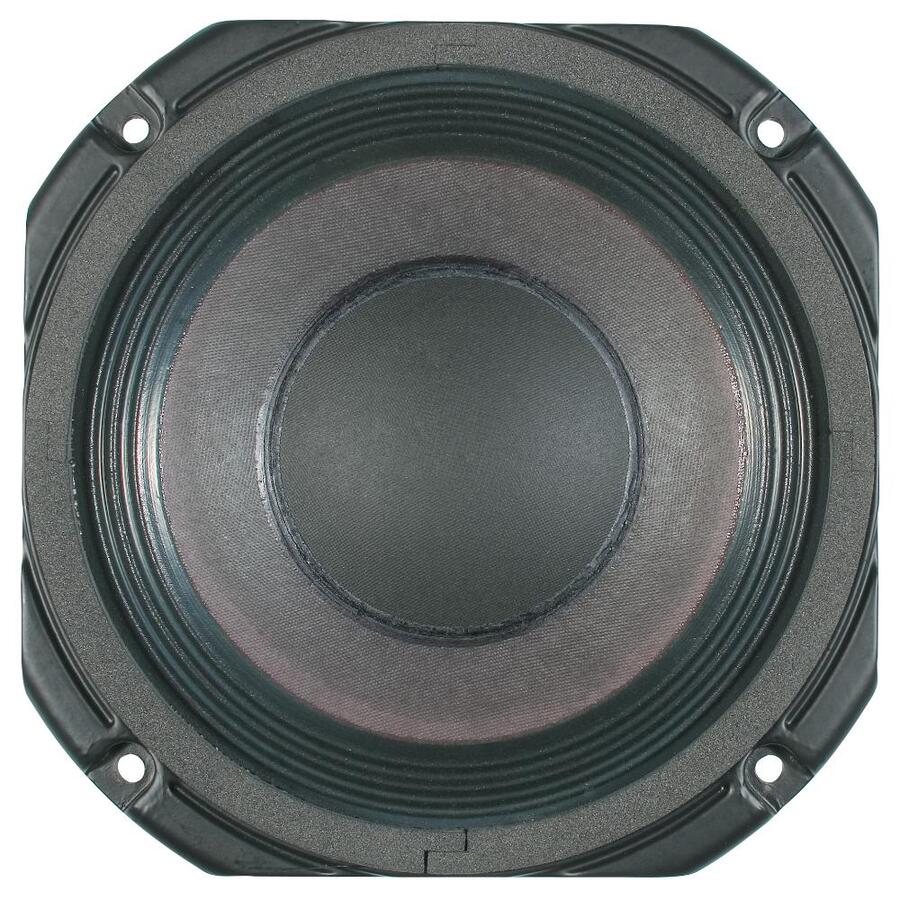

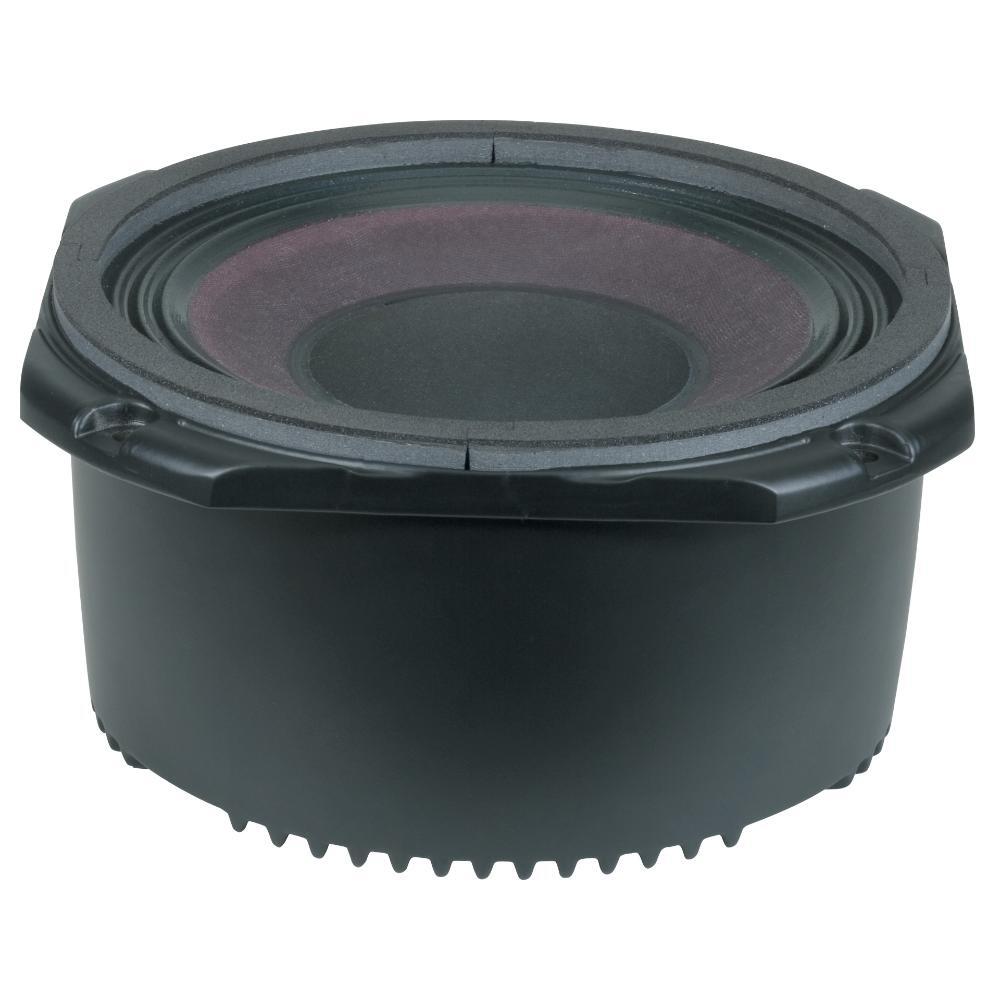

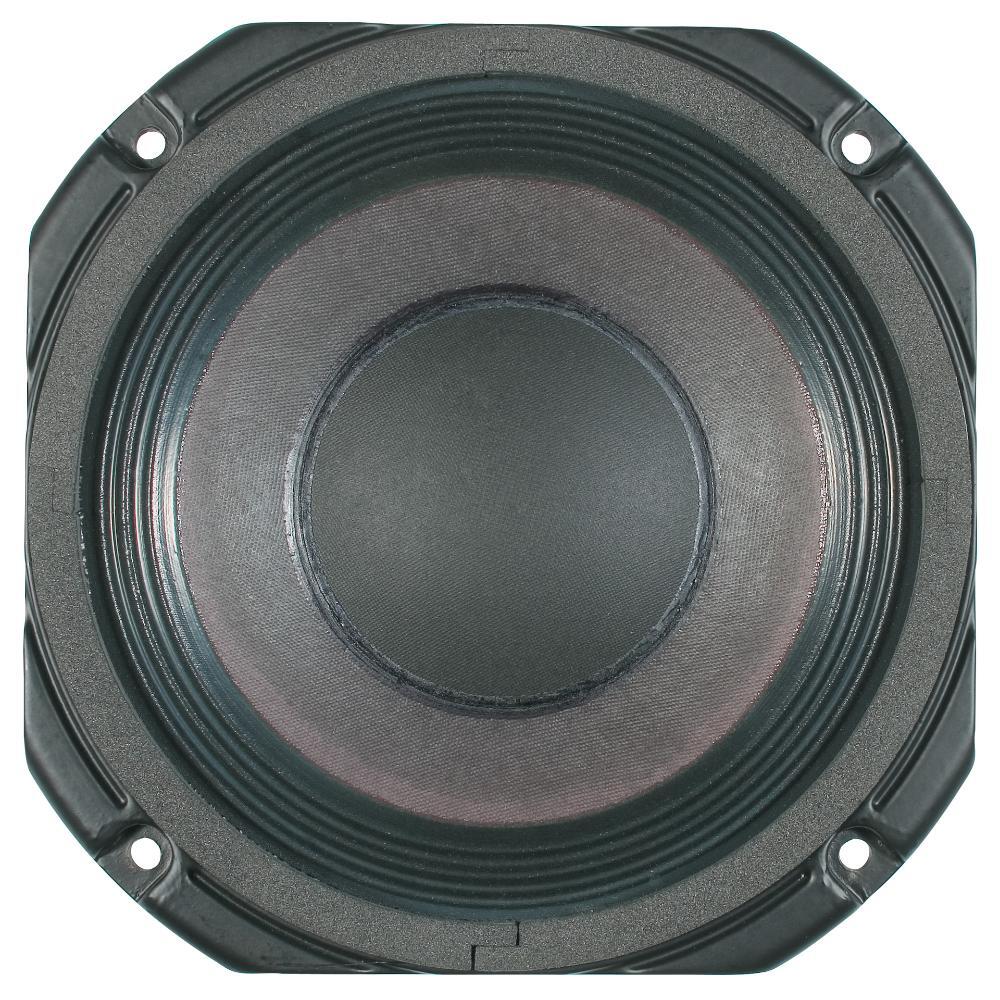

The MR8N301 is a high efficiency, high power midrange specially designed to provide superior sound pressure level in a very compact size. The total weight is reduced to less than half of a comparable ceramic midrange thanks to an incredibly powerful neodymium magnet assembly.

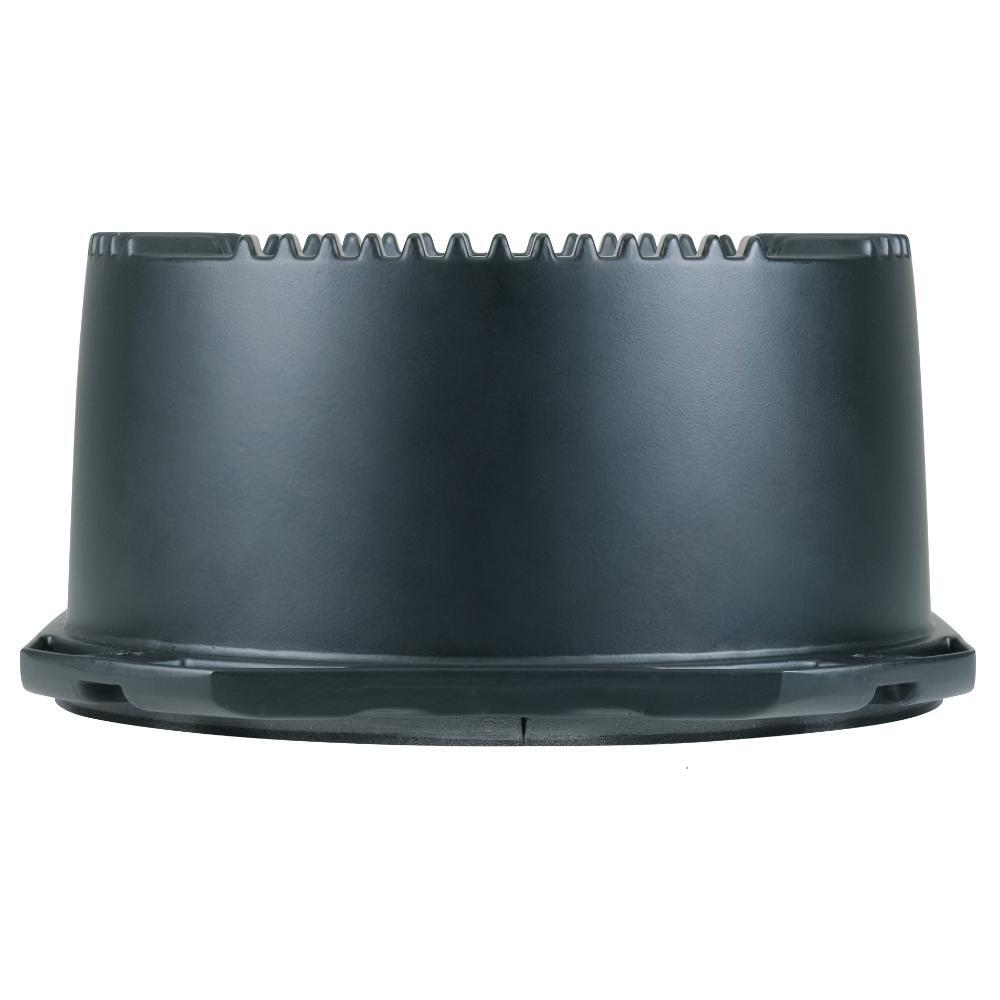

The unique sealed basket design doesn't require a back sealing chember, simplifying the cabinet design and improving heat dissipation. Every detail of this speaker has been optimazed to offer the best response and perfect control to the midrange frequencies.
CARATTERISTICHE
- General specifications
- CONE DESIGN: Curved
- EFFECTIVE PISTON DIAMETER: 168 mm / 6.61 inch
- FREQUENCY RANGE: 300 - 3000 Hz
- KIND OF LAYERS: inside/outside
- MAGNETS: Neodymium
- MAX. EXCURSION BEFORE DAMAGE: 15 mm / 0.59 inch
- MINIMIM IMPEDANCE (OHM): 9 ohm
- NOMINAL DIAMETER: 8 inch / 203 mm
- NUMBER OF LAYERS: 2
- POWER HANDLING CAPACITY (WATT): 200 W
- PROGRAM POWER (WATT): 400 W
- RATED IMPEDANCE (OHM): 8 ohm
- SENSITIVITY (DB): 102 dB
- SPIDER: Single
- SURROUND DESIGN: Triple roll
- SURROUND MATERIAL: Polycotton
- TOP PLATE THICKNESS: 8 mm / 0.31 inch
- VOICE COIL DIAMETER: 3.0 inch / 76 mm
- VOICE COIL MATERIAL: Aluminium
- VOICE COIL WINDING MATERIAL: 11 mm / 0.43 inch
Mounting Information
- BOLT CIRCLE DIAMETER: 220 mm / 8.66 inch
- BOLT HOLE DIAMETER: 7 mm / 0.28 inch
- FRONT MOUNT BAFFLE CUT-OUT: 202 mm / 7.95 inch
- OVERALL DIAMETER: 238 mm / 9.37 inches
- REAR MOUNT BAFFLE CUT-OUT: 187 mm / 7.36 inch
- VOLUME OCCUPIED BY THE DRIVER: 2 liters / 0.08 ft3
Standard compliance
- CE MARKING: Yes
Thiele - small parameters
- BL FACTOR (BL) (T X M): 17.80 T x m
- DC RESISTANCE (RE) (OHM): 6.60 ohm
- EFFECTIVE MOVING MASS (MMS) (GR): 10 gr
- EFFETTIVE PISTON AREA (SD) (M2): 0.02 m2
- ELECTRICAL FACTOR (QES): 0.41 Qes
- EQUIVALENT CAS AIR LOADED (VAS) (LITERS): 2 liters
- HALF-SPACE EFFICENCY (EFF) (%): 12.80%
- MAX. LINEAR EXCURSION (XMAX) (MM): 4 mm
- MECHANICAL FACTOR (QMS): 3.45 Qms
- RESONANCE FREQUENCY (FS) (HZ): 310 Hz
- TOTAL FACTOR (QTS): 0.37 Qts
- VOICE COIL INDUCTANCE @ 1KHZ (LE1K) (MH): 1.16 mH

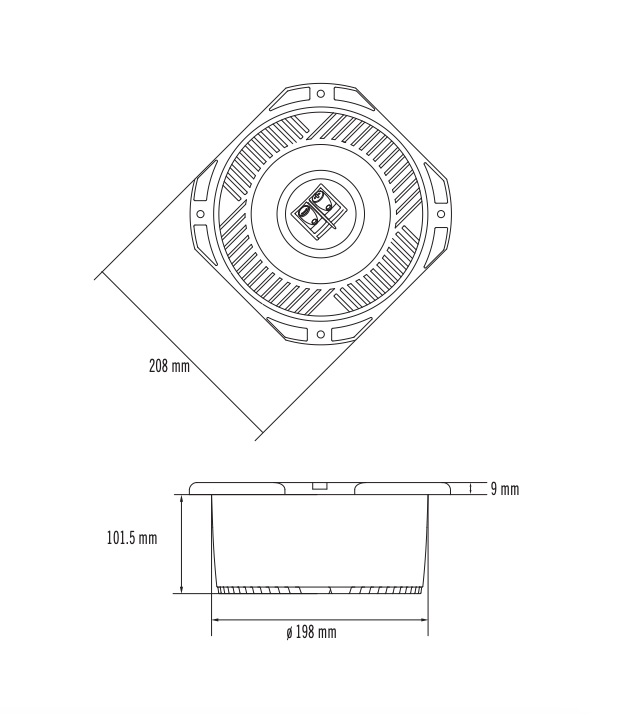

Size
- Diametro: 208 mm
- Altezza: 111 mm
- Peso: 3.31 kg
