Bose DesignMax DM5C

↓ Contattaci per sapere la reale disponibilità ↓

Premium sound to maximize any design.

DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space.

With 12 models to choose from, it’s easy to create tailored solutions that deliver instantly impressive sound.

QuickHold mounting mechanisms make installation efficient, reducing strain and hassle — and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor.

The 50-watt DesignMax DM5C loudspeaker features a two-way 5.25-inch woofer and 1-inch tweeter coaxially mounted within the Dispersion Alignment system, producing a frequency range of 60 Hz - 20 kHz.

The DM5C is ceiling-mounted and installs easily via QuickHold mounting arms

Il prezzo si riferisce alla coppia di satelliti!

INFORMAZIONI GENERALI

• Combine models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
• Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily — all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier

Applicazioni

• Performing arts venues
• Places of worship
• Conference centers
• Retail stores
• Restaurants and bars
• Hospitality venues

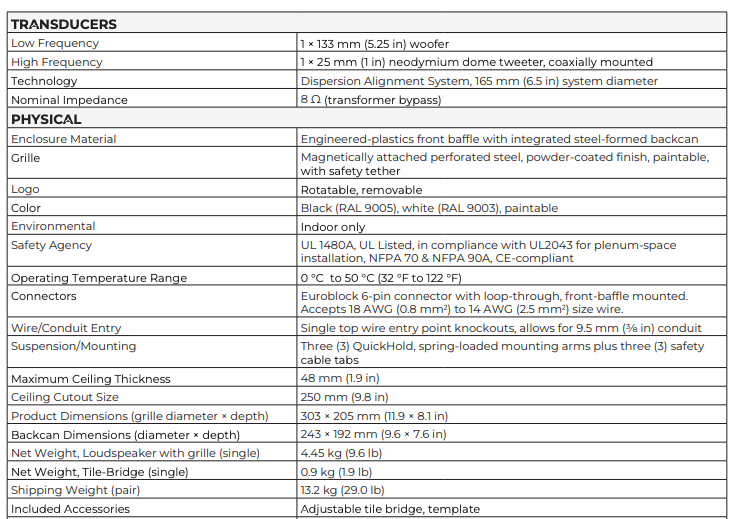

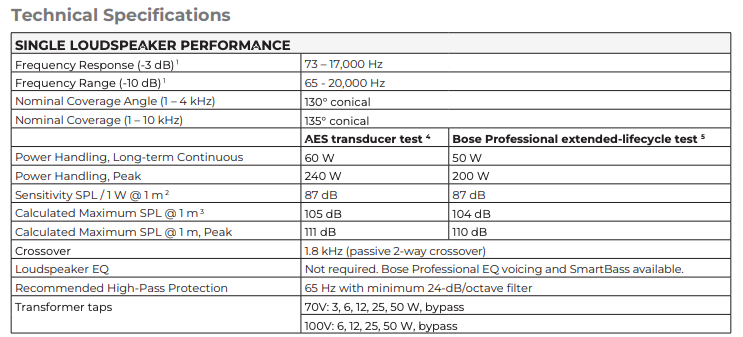

Specifiche tecniche

• Power Handling, long-term continuous: 50 W
• Power Handling, peak: 200 W
• Frequency Response (+/-3 dB): 70-17,000 Hz
• Frequency Range (-10 dB): 60-20,000 Hz
• Nominal coverage (H x V): Conical
• Sensitivity (SPL/1W @ 1 m): 88 dB
• Maximum SPL @ 1m: 105 dB
• Nominal Impedance: 8 Ω (transformer bypass)
